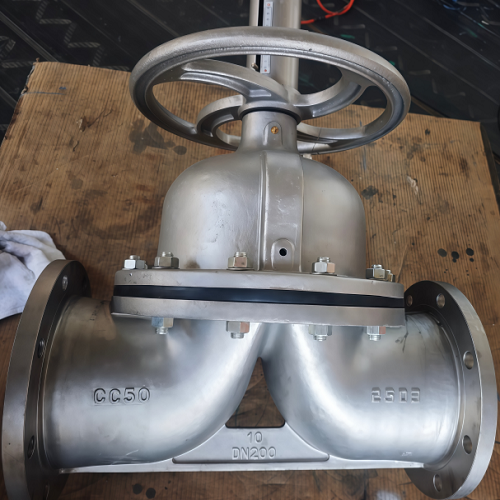

Manual Weir Type Diaphragm Valve with Position Indicator CC50 Material DN200 PN10
Key Specifications / Features
Model No.: Hits: 1
DN200 PN10 CC50 manual weir diaphragm valve, flanged connection, handwheel with position indicator, media isolated design for tight shut-off and low maintenance
Request a quote Tags:
Detail Information
This manual weir diaphragm valve is built with CC50 cast stainless steel body, DIN PN10 flanged ends. Handwheel operation with visual position indicator for clear opening status.
The diaphragm fully separates the process medium from the valve stem, achieving bubble-tight shut-off. No stem packing, zero leakage risk, simple maintenance. Suitable for water, wastewater and mild corrosive media in chemical, water treatment and general industrial piping.
Specifications
- Type: Manual Weir Diaphragm Valve
- Size: DN200
- Pressure Class: PN10
- Body Material: CC50 Cast Stainless Steel
- Connection: DIN Flange RF
- Operation: Handwheel, with position indicator
- Non-rising stem
