RTK Motorized Control Valve-Series MV5211+ Electrical Actuator 30E-028 | JONLOO

JONLOO company supplies Motorized Control Valve-Series MV5211+ Electrical Actuator 30E-028

Tags:

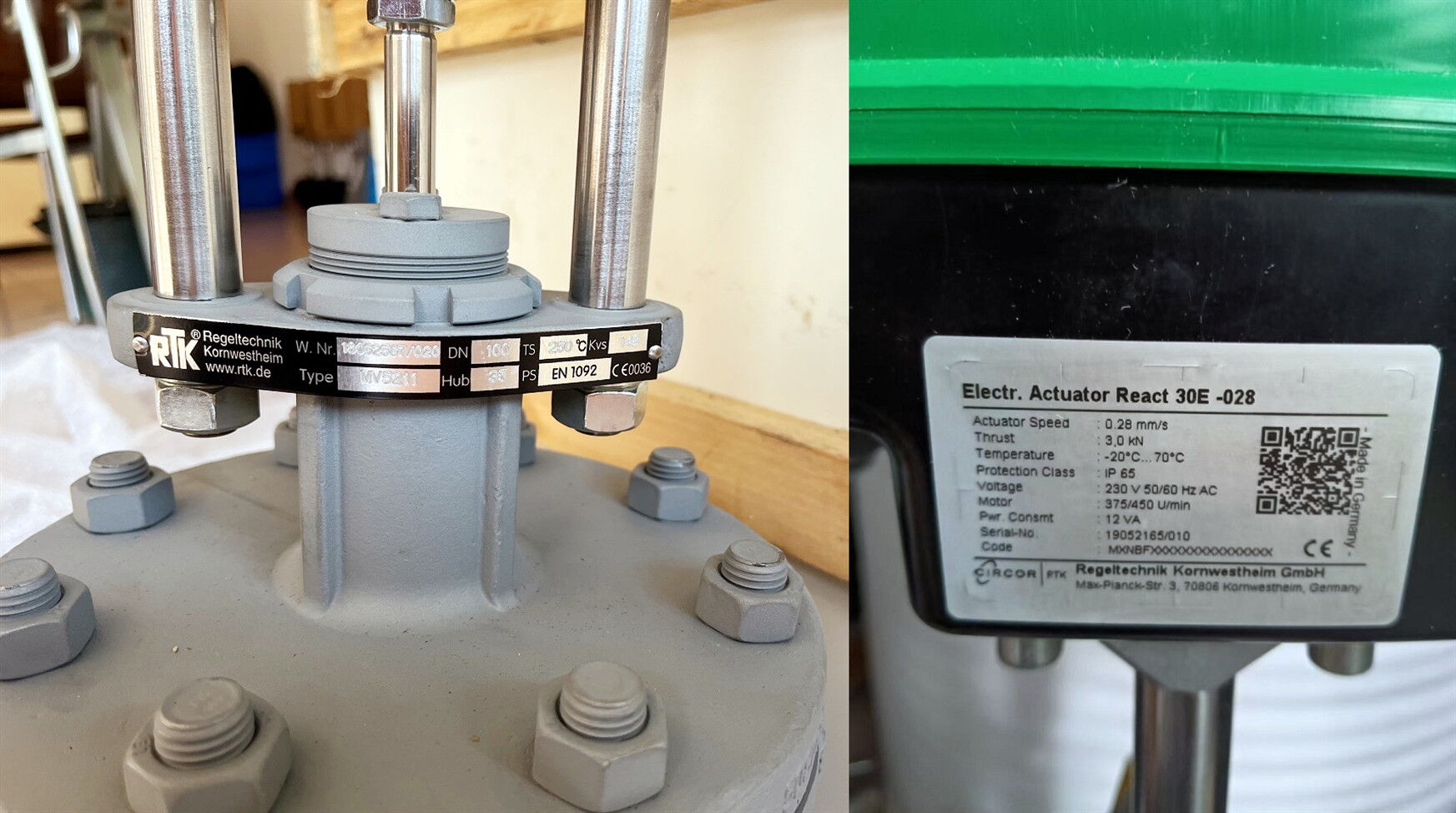

Motorized control valve - series MV 5211 two-way design
Electric actuator - type REact 30E-028
nominal diameter DN 100, pressure rating PN 16
body made of Cast iron EN-GJL-250
flanges according to DIN
spindle packing:
chevron rings PTFE/graphite
characteristic / flow direction: equal % / normal
parabolic cone, metal sealing
kvs-value = 148 m³/h, stroke 35 mm
seat diameter 100 mm
surface treatment with zinc dust primary coat
CE-marking according PED
Electric actuator - type REact 30E-028
actuating force 3 kN, incl. handwheel for manual operation
single-phase motor 230 V, 50/60 Hz
actuating speed 0.28 mm/s, stroke 35 mm
protection rating IP 65
accessories:
- additional limit switches (2 off)
- potentiometer 1000 Ohm
