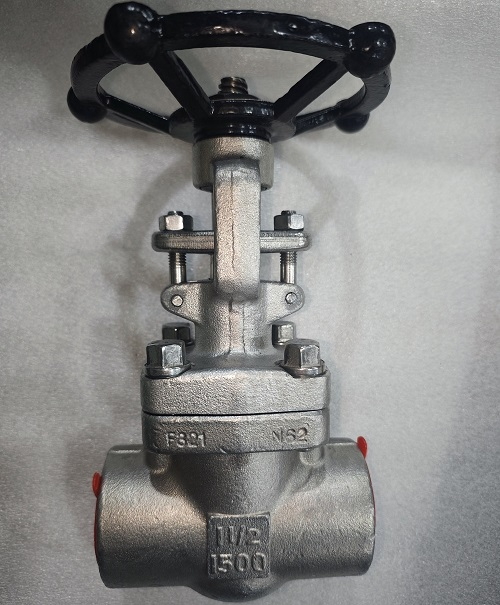

11/2inch class 1500 F321 Forged Steel Gate Valve, Socket‑Weld End API 602 Handwheel Operated
Key Specifications / Features
Model No.: Hits: 0
API602 11/2‑inch Class 1500 F321 forged steel gate valve, socket‑weld connection, manual handwheel operation, for high‑temperature corrosive working conditions
Request a quote Tags:
Detail Information
This API 602 forged steel gate valve is made of ASTM A182‑F321 stainless steel, which provides excellent high‑temperature oxidation resistance and stress‑corrosion cracking resistance. Widely applied in power plant, petrochemical and high‑temperature process pipelines.
Rising stem design enables direct visual confirmation of valve open‑closed status. Socket‑weld ends deliver firm, leak‑proof connection for high‑pressure piping. Compact forged‑body construction reduces risk of casting defects. Manual handwheel offers reliable simple operation.
Every valve undergoes strict shell test and seat tightness test according to API 602 before delivery to guarantee stable sealing performance.
Key Features
- Size: 11/2 Inch
- Pressure Class: Class 1500
- Body Material: ASTM A182 F347 Forged Stainless Steel
- Operation: Handwheel Operated
- Stem: Rising Stem
- End Connection: Socket‑Weld (SW)
- Design Standard: API 602
- Application: High‑temperature, high‑pressure & corrosion‑resistant process systems
