Key Specifications / Features
Model No.: Hits: 0
Detail Information

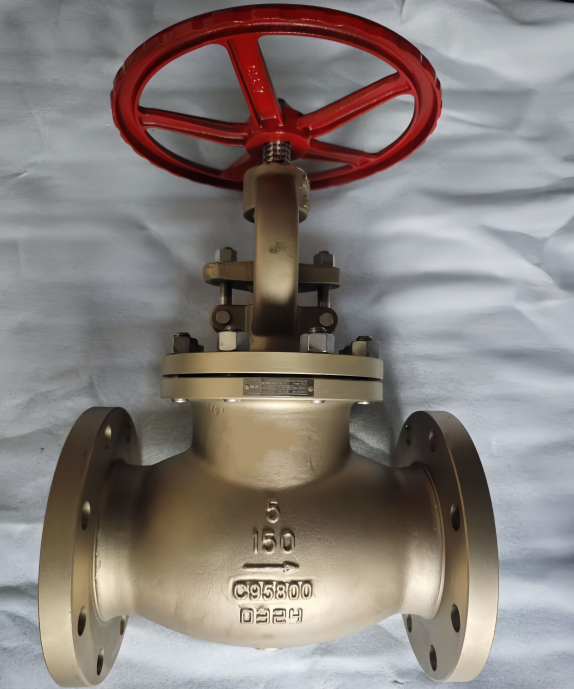

This is a 5-inch Class 150 flanged globe valve precision-cast from ASTM B148 C95800 aluminum bronze, designed for flow regulation and shut-off in corrosive fluid systems. It features a rising stem, bolted bonnet, and handwheel operation for reliable control in marine, seawater, and industrial environments.
Key Specifications
| Parameter | Details |
|---|---|
| Size | 5" (DN125) |
| Pressure Rating | Class 150 (ASME B16.34) |
| Body Material | C95800 (Aluminum Bronze) |
| End Connection | Flanged RF (ASME B16.5) |
| Face-to-Face | ASME B16.10 standard |
| Operation | Manual handwheel, rising stem |
| Test Standard | API 598 hydrostatic & seat leakage test |
Core Features
✅ Superior Corrosion ResistanceC95800 aluminum bronze offers exceptional resistance to seawater, brine, and corrosive media, making it ideal for marine, offshore, and desalination applications.
✅ Robust & Durable ConstructionThe cast bronze body provides high tensile strength, wear resistance, and excellent machinability, ensuring long service life in demanding conditions.
✅ Precise Flow ControlThe globe valve design allows for accurate throttling and shut-off, with a swivel disc to ensure tight sealing and minimal leakage.
✅ Easy MaintenanceBolted bonnet design enables straightforward disassembly for inspection and maintenance without removing the entire valve from the pipeline.
✅ Compliant with Global StandardsManufactured to meet ASME, API, and ASTM specifications, ensuring interchangeability and reliability in international projects.
Typical Applications
- Seawater cooling systems
- Marine and shipbuilding piping
- Desalination plants
- Offshore oil & gas facilities
- Chemical processing with mild corrosive media
- Industrial water treatment systems
