JONLOO Valves offers a specialized range of cryogenic valves designed to perform reliably in ultra-low temperature environments. Our valves are built to handle extreme cold, ensuring secure and efficient control of cryogenic fluids such as liquid nitrogen, oxygen, and LNG. Made from robust materials and engineered for precision, they provide exceptional durability and safety, minimizing risks associated with cryogenic processes.

Valve description:

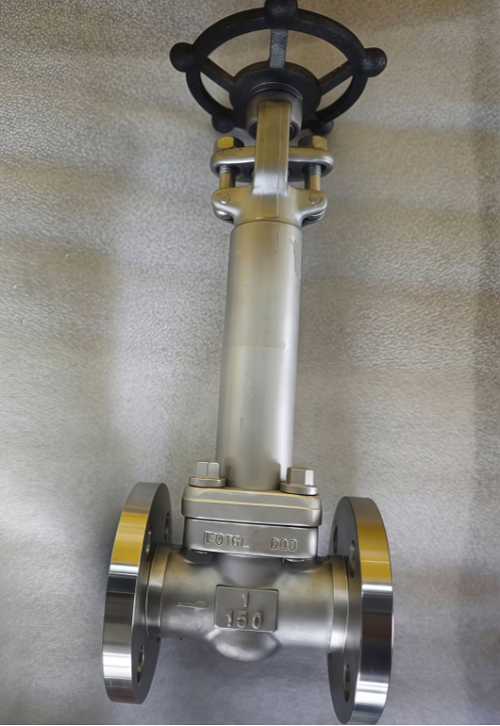

Name: Cryogenic globe valve, for low temperature at -196℃.
Description: with extension stem.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 1Inch.
Nominal class: 150 LB.
Ends connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Extended bonnet

Low emission packing

Full stellite overlay seat sealing surface

Discharge holes at the upstream end can prevent body and bonnet cavity pressure rising.

Body material: low-temperature carbon steel, carbon steel

Nominal diameter: 1/2"～24"（DN15~600）

Pressure range: Class150～2500（PN10~420）

End connection: RF, RTJ, BW

Working temperature:-196℃～+120℃

Operation: hand wheel, gear box, electric, pneumatic , hydraulic actuator, etc.
