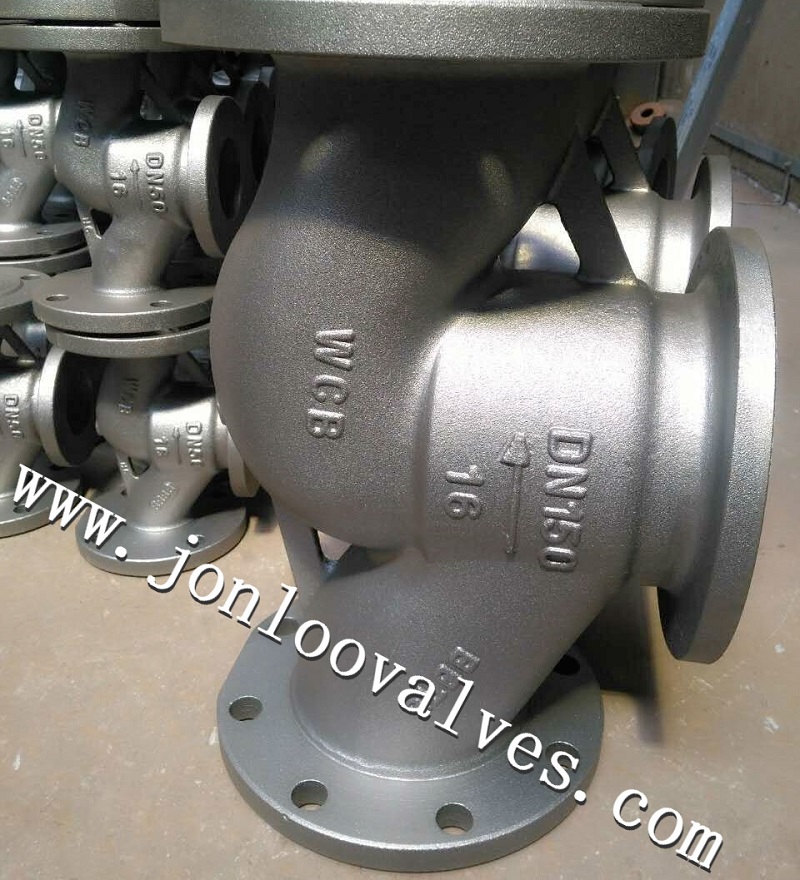

CE Certified Globe Valve Rising Stem A 216 WCB DN 150 PN 16 DIN Standard
Key Specifications / Features
Model No.: J41H Hits: 119
Leading Globe Valve factory JONLOO supplies DIN Standard Globe Valve , which is CE Certified. Most european countries would require CE certified valves.
Request a quote Tags:
Detail Information
Details
Size:150mm
Pressure Rating: PN16
Body/Bonnet: WCB(GP240GH)
Disc: WCB(GP240GH)
Seat:13%Cr
RF Flanges
Outside screw and yoke
Bolted bonnet
Features
1.Straight patteren body design
2.OS & Y,outside screw and yoke
3.BB,Bolted bonnet
4.Yoke intergral with bonnet
5.Rising stem and handwheel
6.Loose disc,choice of plug or ball
7.Renewable seat ring
8.Impact handwheel for 10″ & above
9.Horizontal service
10.Flanged or butt weld ends
11.Available with gear operator
Standards
1.Design and Manufacture: DIN 3356
2.Face to Face: DIN 3202
3.Flanged ends: EN1092-1:2007
4.Inspection and test: API 598
Size:150mm
Pressure Rating: PN16
Body/Bonnet: WCB(GP240GH)
Disc: WCB(GP240GH)
Seat:13%Cr
RF Flanges
Outside screw and yoke
Bolted bonnet
Features
1.Straight patteren body design
2.OS & Y,outside screw and yoke
3.BB,Bolted bonnet
4.Yoke intergral with bonnet
5.Rising stem and handwheel
6.Loose disc,choice of plug or ball
7.Renewable seat ring
8.Impact handwheel for 10″ & above
9.Horizontal service
10.Flanged or butt weld ends
11.Available with gear operator
Standards
1.Design and Manufacture: DIN 3356
2.Face to Face: DIN 3202
3.Flanged ends: EN1092-1:2007
4.Inspection and test: API 598
