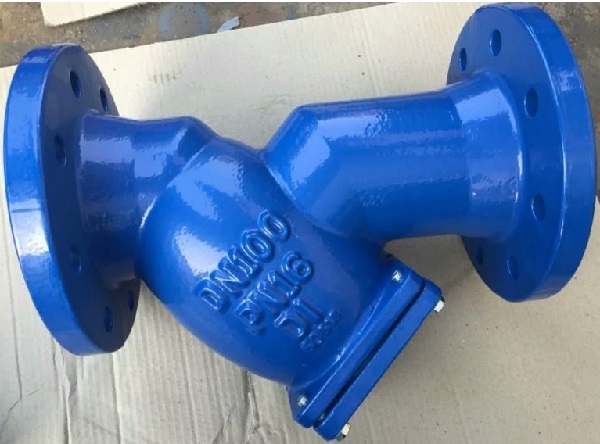

DIN Y Strainer Ductile Iron PN16
Key Specifications / Features
Model No.: Hits: 45
JONLOO company supplies DIN Y Strainer Ductile Iron PN16
Request a quote
Share
Tags:
Next: SS Basket Strainer RF 316L PN10 DN150
Previous: Cast Iron Y Type Strainer 125LB
Detail Information
Purpose
The product is mainly installed on all kinds of water supply and drainage pipeline or steam pipeline and gas pipeline. Used to protect the rest of the fitting or valve from debris and damage of impurity in the system.
Characteristics
1, modelling beautiful, body reserve pressure hole.
2, easy to use and fast. According to user requirements to cover the screw on the change into ball valve, ball valve outlet drainage pipe, so that you can not open the cover, sewage with pressure.
3, can according to user requirements to provide different filtration precision of mesh. Filter cleaning easy to change.
4, and fluid channel design scientific and reasonable, flow resistance smaller, more traffic, the total area of the mesh is 3 ~ 4 times the size of nominal diameter.
5, telescopic can make the installation more convenient disassembly.
Main parts and materials:
Standards
Test
-600x444.webp)
The product is mainly installed on all kinds of water supply and drainage pipeline or steam pipeline and gas pipeline. Used to protect the rest of the fitting or valve from debris and damage of impurity in the system.
Characteristics
1, modelling beautiful, body reserve pressure hole.
2, easy to use and fast. According to user requirements to cover the screw on the change into ball valve, ball valve outlet drainage pipe, so that you can not open the cover, sewage with pressure.
3, can according to user requirements to provide different filtration precision of mesh. Filter cleaning easy to change.
4, and fluid channel design scientific and reasonable, flow resistance smaller, more traffic, the total area of the mesh is 3 ~ 4 times the size of nominal diameter.
5, telescopic can make the installation more convenient disassembly.
Main parts and materials:
| Parts name | material |
| Body、Bonnet | Grey iron ;GG25,Ductiel Iron |
| Screen | Stainless steel 304 |
Standards
| Face to face | Flange end |
| DIN32012- F1 DN125-DN250;DIN3202 F5 |
DIN2532/DIN2533 |
Test
| Nominal pressure | Shell test | Seal test |
| 1.6 | 2.4 | 1.8 |
