API 600 6" Class 900 LCB Gate Valve | Jonloo Valve

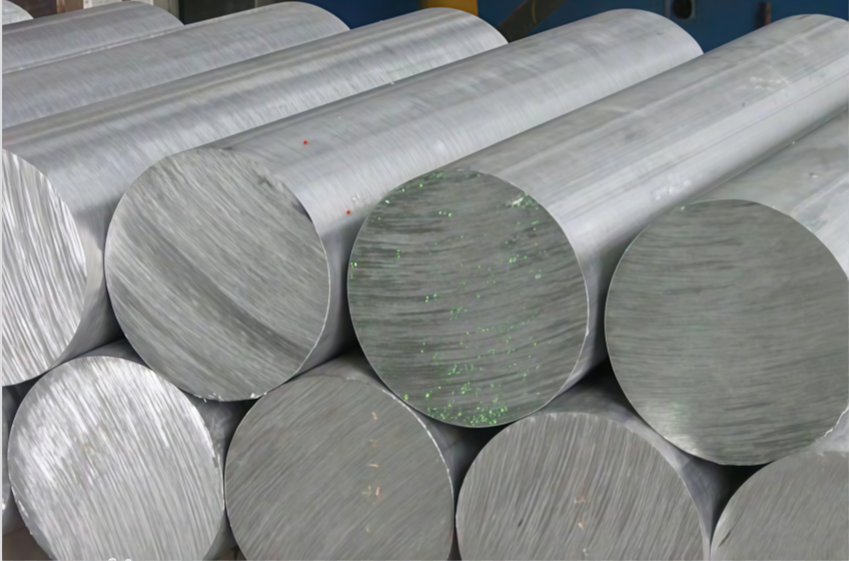

At the core of this valve’s exceptional performance is its ASTM A352 LCB body material – a specification that stands for “Low Temperature Carbon Steel Grade B.” This ferritic steel alloy is purpose-built for low-temperature service, addressing one of the most challenging problems in cryogenic and high-pressure applications: material embrittlement at sub-zero temperatures. Unlike standard carbon steels, which can become brittle and prone to catastrophic fracture when exposed to cryogenic conditions, LCB maintains its ductility and impact resistance down to -46°C (-50°F), making it the material of choice for applications where both low-temperature performance and high-pressure integrity are non-negotiable. For industries seeking a balance of performance and cost, LCB eliminates the need for expensive exotic alloys while delivering uncompromising reliability.

• Low-Temperature Toughness: LCB is heat-treated to achieve excellent Charpy V-notch (CVN) impact toughness at sub-zero temperatures, ensuring the material does not fail under thermal shock or cyclic loading in cryogenic service—critical for long-term operational safety.

• Pressure Retention: With a yield strength of 240 MPa (35 ksi) and tensile strength between 415-585 MPa (60-85 ksi), LCB delivers the structural strength required for Class 900 pressure rating (1500 PSI at ambient temperatures), maintaining these properties across its entire operating range to support high-pressure industrial processes.

• Weldability: The alloy's controlled carbon content and low impurity levels make it highly weldable, critical for the butt-weld connections used in this valve. This ensures permanent, leak-tight integration into high-pressure pipelines, reducing maintenance needs and potential leak points.

• Corrosion Resistance: While not a stainless steel, LCB offers adequate resistance to the mild corrosive environments found in natural gas and LNG processing, particularly when paired with appropriate internal coatings or hard-facing—extending valve service life and reducing replacement costs.

LCB is specifically engineered for service conditions that demand both high pressure and low-temperature resistance, making it a versatile choice for multiple critical industries, including:

1. Cryogenic Natural Gas Processing: LNG plants, where natural gas is cooled to -162°C (-260°F) for liquefaction. While LCB is not suitable for the extreme cryogenic temperatures of liquid methane itself, it excels in the “warm cryogenic” sections of LNG facilities, such as feed gas conditioning and high-pressure pipeline headers operating between -46°C and ambient temperatures—key areas where reliability directly impacts plant efficiency.

2. High-Pressure Natural Gas Transmission: Cross-country pipelines carrying natural gas at pressures up to 1500 PSI, where line temperatures can drop significantly in cold climates or during pressure reduction operations. LCB’s toughness ensures pipeline integrity even in harsh weather conditions.

3. Petrochemical Refining: Units handling light hydrocarbon gases (propane, butane, ethane) at low temperatures and high pressures, where standard carbon steels would risk brittle fracture. LCB’s durability helps refineries maintain consistent operations and avoid costly downtime.

4. Industrial Gas Systems: Nitrogen, oxygen, and argon distribution systems operating at sub-zero temperatures, where LCB provides a cost-effective alternative to more expensive austenitic stainless steels—delivering comparable performance at a lower total cost of ownership.

By selecting LCB for this Class 900 gate valve, Jonloo has struck an optimal balance between performance, cost, and availability, delivering a solution that meets the strict requirements of API 600 while avoiding the premium pricing of exotic alloys—perfect for businesses looking to optimize operational costs without sacrificing quality.

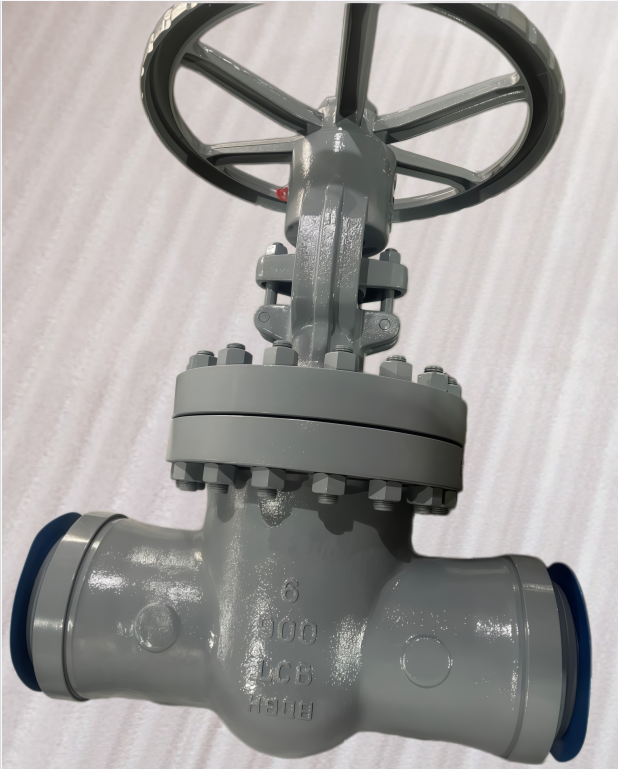

Building on the foundation of LCB material, the new Jonloo API 600 Class 900 Gate Valve is engineered to thrive in the most challenging industrial environments. Designed for 6-inch nominal pipe size (NPS 6) with butt-weld ends (per ASME B16.25), this valve is built to integrate seamlessly into high-pressure, low-temperature pipeline systems—offering the reliability and durability that Jonloo is known for worldwide.

A full port design ensures that the valve’s internal bore matches the pipeline's inner diameter, minimizing pressure drop and turbulence. This not only improves system efficiency but also allows for pipeline pigging operations, a key requirement for natural gas transmission lines where regular cleaning and inspection are essential. The smooth, unobstructed flow path also reduces the risk of fluid stagnation, which can lead to corrosion or hydrate formation in cryogenic applications—further extending the valve’s service life and reducing maintenance costs.

To withstand the wear and tear of high-velocity fluid flow and repeated operation, the gate and seat surfaces are hard-faced with Stellite cobalt-based alloy. This provides exceptional resistance to abrasion, erosion, and galling, ensuring tight shut-off even after thousands of cycles. The hard-facing also protects against damage from entrained solids in the fluid stream, a common concern in natural gas pipelines—making this valve a long-lasting, low-maintenance solution for critical applications.

The valve features a rising stem design, which provides visual indication of the valve's open/closed position at a glance—enhancing operational safety. The large, ergonomic handwheel is engineered to deliver smooth, easy operation even under high differential pressure conditions, eliminating the need for excessive force or auxiliary actuators in most applications. For remote or automated systems, the valve can also be fitted with electric, pneumatic, or hydraulic actuators—offering flexibility to meet diverse operational needs.

At Jonloo, quality is built into every stage of the manufacturing process, and the new Class 900 LCB Gate Valve is no exception. Every valve undergoes a comprehensive testing regimen to ensure compliance with international standards and customer specifications—guaranteeing that each product meets the high reliability standards Jonloo customers expect.

The Jonloo API 600 Class 900 LCB Gate Valve is purpose-built for use in industries where high pressure, low temperatures, and reliable shut-off are critical—delivering tangible benefits to operators across sectors:

• LNG Processing Plants: Used in feed gas conditioning, compression, and high-pressure pipeline systems operating at temperatures down to -46°C. The valve’s LCB material and pressure seal design make it ideal for the rigorous demands of LNG facilities, where safety and reliability are paramount—helping plants maintain consistent production and avoid costly downtime.

• Natural Gas Transmission Pipelines: In cross-country pipelines carrying natural gas at pressures up to 1500 PSI, the valve provides tight shut-off for isolation and bypass operations. Its full port design allows for pigging, while the hard-faced seats ensure long service life in high-velocity flow conditions—reducing maintenance costs and improving pipeline efficiency.

• Petrochemical Refineries: Deployed in hydrotreating, hydrocracking, and light hydrocarbon processing units, where the valve’s LCB material resists brittle fracture at low temperatures and high pressures—supporting smooth, uninterrupted refining operations.

• Cryogenic Storage Facilities: Used in secondary containment and transfer lines for industrial gases, where the valve maintains integrity under cyclic pressure and temperature changes—ensuring safe storage and transfer of critical gases.

• Power Generation: In combined cycle power plants handling natural gas feedstock, the valve provides reliable shut-off for fuel gas lines, ensuring safe and efficient operation—helping power plants meet energy demand consistently.

“Our new LCB gate valve addresses a critical gap in the market for a high-quality, cost-effective solution for cryogenic high-pressure applications,” said Li Wei, Product Manager at Jonloo. “By combining API 600 compliance with LCB material and pressure seal technology, we’ve created a valve that not only meets but exceeds the performance expectations of our customers in the oil and gas industry. This valve is a testament to our commitment to engineering solutions that solve real-world challenges and deliver value to our global partners.”

Beyond its technical performance, the Jonloo Class 900 LCB Gate Valve is designed with sustainability and operational efficiency in mind—aligning with the global push for greener, more efficient industrial operations:

• Long Service Life: The valve’s durable construction, hard-faced seats, and corrosion-resistant LCB material minimize the need for frequent replacements, reducing waste and lowering the total cost of ownership for operators—delivering long-term value.

• Zero Leakage Design: The valve’s tight shut-off capability helps reduce fugitive emissions, supporting global efforts to reduce greenhouse gas emissions in the oil and gas industry—helping customers meet sustainability goals.

• Energy Efficiency: The full port design minimizes pressure drop across the valve, reducing energy consumption in pumping and compression systems—lowering operational costs and carbon footprints.

• Simplified Maintenance: The pressure seal bonnet and modular design make the valve easy to inspect and repair in the field, reducing downtime and maintenance costs—improving overall operational efficiency.

“At Jonloo, we believe that sustainability and operational excellence go hand in hand,” added Li Wei. “By providing reliable, leak-tight valves for critical applications, we help our customers reduce their environmental impact while ensuring the safety and efficiency of their operations. This new gate valve is a prime example of how innovative engineering can deliver both performance and sustainability benefits—supporting our customers' long-term success.”
