Pneumatic Dome Valve DN300 PN16, Abrasion Resistant for Pneumatic Conveying

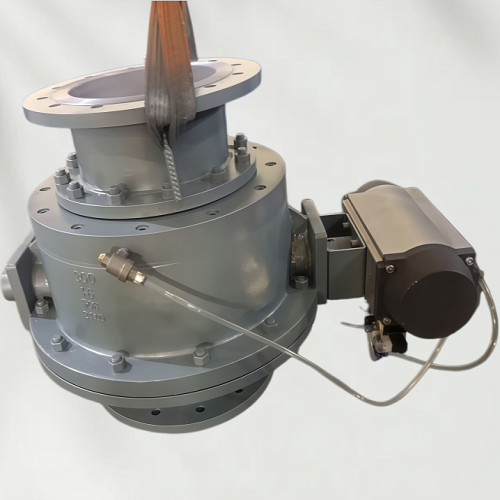

This is a DN300 PN16 pneumatic dome valve, designed for pneumatic conveying systems handling abrasive dry powders and bulk solids. It features a heavy-duty carbon steel body, a dome-style sealing mechanism, and a pneumatic actuator, delivering reliable shut-off, low pressure drop, and long service life in harsh industrial environments.

Tags:

The dome valve seal automatically deflates during opening and closing, thereby avoiding contact with the medium.
The silicon rubber seal automatically inflates only when dome and eliminating unnecessary wear the dome is in fully closed position.

     1.Inflatable silicon rubber seat keeps valve zero leakage.
     2.Dome valve was operated by two independent solenoid valves, one control valve open and close, the other control seat air inflation and exhaust. This design can make zero abrasion between seat ring and spherical surface.
     3.Low maintenance and quickly replacement.
     4.Mainly materials casting steel stainless steel, and cast iron. Teflon, tungsten carbide, chrome carbide or other coatings     available according to customer's requirements.

     1. Basic Design: According to customer's requirement
     2.End Connection: ASME or customer's requirement
     3.Face to face: ASME B16.10
     4. Inspection and Testing: API 598

Design Features:

     1. Different Pneumatic Actuator Types  are for customer's choice, such as "Fanshaped model", "AT Model" or "Swing Model"
     2. Air-in makes rubber seat inflat to contact ball when valve is in full close position.Air-fail makes rubber seat shrink to uncontact ball while valve is open. This design will make no friction between ball and seat when sealing is optional.
     3. Different ball surface heat treatments are to suit different application, such as "Chroming,Tungsten Carbide"
     4. Valve body can be extended in any length to meet end user's special requirements.
     5. Rubber seat material EPDM, Viton, Silicon Rubber all are available.
