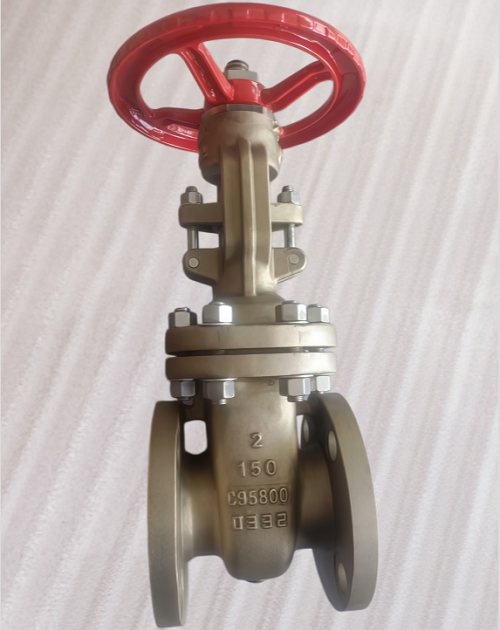

C95800 Nickel Aluminum Bronze Gate Valve 2" 150LB

This is a 2-inch Class 150 flanged gate valve made of C95800 nickel aluminum bronze, featuring OS&Y rising stem and handwheel operation. Designed for corrosive services (e.g., seawater, marine environments), it offers superior corrosion resistance, reliable shutoff, and easy maintenance per API 600/ASME standards.

Tags:

• C95800 Gate Valve
• Nickel Aluminum Bronze Gate Valve
• Marine Gate Valve
• 150LB Flanged Gate Valve

This is a 2-inch (DN50) Class 150 nickel aluminum bronze (C95800) gate valve, designed for industrial applications requiring superior corrosion resistance, particularly in seawater, marine, and mildly corrosive fluid services. It features a bolted bonnet, outside screw and yoke (OS&Y) rising stem, and flanged ends for secure pipeline integration.

Key Specifications

• Size: 2" (DN50)
• Pressure Rating: Class 150 (ASME B16.34)
• Body Material: ASTM B148 C95800 Nickel Aluminum Bronze
• Design Standard: API 600 / ASME B16.34
• End Connection: Raised Face (RF) Flanged, ASME B16.5
• Face-to-Face: ASME B16.10
• Operation: Handwheel (rising stem with position indication)
• Testing & Inspection: API 598

Features & Benefits

• C95800 Nickel Aluminum Bronze Construction: Offers excellent resistance to corrosion, erosion, and cavitation, making it ideal for seawater, brine, and offshore environments.
• OS&Y Rising Stem Design: Provides clear visual indication of valve position (open/closed) and protects the stem threads from process media, extending service life.
• Bolted Bonnet: Ensures easy maintenance and robust pressure containment for reliable performance.
• Full Bore Design: Minimizes pressure drop and allows for pigging operations, suitable for clean or slightly viscous fluids.
• Low Maintenance: Durable bronze construction reduces the risk of galling and wear, even in harsh conditions.

Applications

• Marine and offshore piping systems
• Seawater intake and distribution lines
• Desalination plants
• Oil & gas process systems with corrosive fluids
• Chemical and petrochemical services
