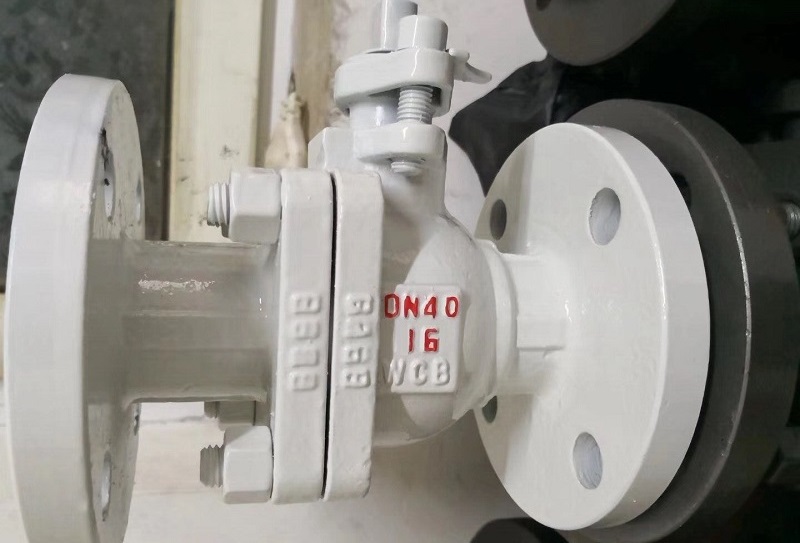

Carbon Steel Ball Valve DIN Standard PN16 DN40
Key Specifications / Features
Model No.: Q41F Hits: 67
China Ball Valve factory Jonloo supplies carbon steel Ball Valve with floating ball and two-piece split body.
Request a quote
Share
Tags:
Detail Information
Details
Size:40mm
Pressure:PN16
Floating Type
Body/Bonnet:A216 WCB
Ball: SS316
Stem: A182 F6a
Seat: PTFE
Standards
Design and Manufacture: DIN 3357
Face To Face: EN 558-1/DIN 3202
Flanged Ends: EN 1092-1
Test And Inspection: EN 12266-1/API 598
Features
Full port design
Two piece split body or three piece bolted body
With floating ball or trunnion mounted ball
Blow-out proof stem, Anti-static,
Optional locking device or stem extension,
Optional direct mounting to ISO 5211
(1)-800x543.webp)
Size:40mm
Pressure:PN16
Floating Type
Body/Bonnet:A216 WCB
Ball: SS316
Stem: A182 F6a
Seat: PTFE
Standards
Design and Manufacture: DIN 3357
Face To Face: EN 558-1/DIN 3202
Flanged Ends: EN 1092-1
Test And Inspection: EN 12266-1/API 598
Features
Full port design
Two piece split body or three piece bolted body
With floating ball or trunnion mounted ball
Blow-out proof stem, Anti-static,
Optional locking device or stem extension,
Optional direct mounting to ISO 5211
