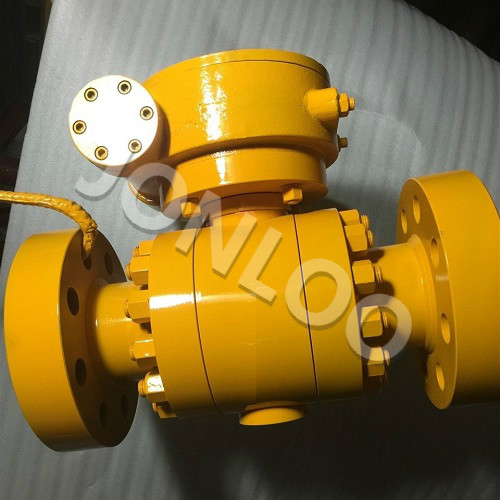

Forged Steel Ball Valve for Natural Gas Pipeline 2500LB Flange ends
Key Specifications / Features
Model No.: Q347N Hits: 61
China ball valve manufacturer JONLOO supplies Forged Steel Ball Valve for Natural Gas Pipeline. The ball valve is for high pressure 2500lb application.
Request a quote
Share
Tags:
Detail Information
Details
Size:3inch
Pressure:2500LB
Body/Bonnet:A105
Ball: A105+EPN/SS304/SS316
Stem: A182 F6a
Seat: NYLON
Standards
Design and Manufacture: API 6D
Face To Face: ASME B16.10
Flanged Ends: ASME B16.5
Test And Inspection: API 598
Features
Reduced port or full port design
Two piece split body or three piece bolted body
With trunnion mounted ball
Blow-out proof stem, Anti-staic,
Optional locking device or stem extension,
Optional direct mounting to ISO 5211
