High Pressure Flanged Ball Valve 3 inch 900LB A105 API6D
Key Specifications / Features
Model No.: Q347F Hits: 249
China ball valve factory JONLOO supplies high pressure flanged ball valve for hard working condition and max pressure can be 2500 LB.
Request a quote
Share
Tags:
Detail Information
Details
Size:3inch
Pressure:900LB
Body/Bonnet:A105
Ball: A105+ENP, F304, F316
Stem: A182 F6a, A182 F304, A182 F316
Seat: NYLON
Standards
Design and Manufacture: API 6D
Face To Face: ASME B16.10
Flanged Ends: ASME B16.5
Test And Inspection: API 598
Features
Reduced port or full port design
Two piece split body or three piece bolted body

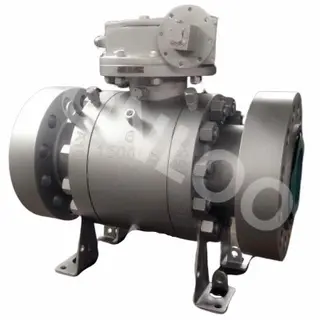

With trunnion mounted ball
Blow-out proof stem, Anti-staic,
Optional locking device or stem extension,
Optional direct mounting to ISO 5211
