Pneumatic Actuator Ceramic Twin Disc Gate Valve
Key Specifications / Features
Model No.: Hits: 155
China valve manufacturer JONLOO supplies Pneumatic Actuator Ceramic Twin Disc Gate Valve for Cement plant, Chemical plant, Mining plant, etc
Request a quote
Share
Tags:
Next: Ceramic Rotary Feeding Valve
Previous: Heavy Duty Slurry Knife Gate Valve
Detail Information
JONLOO twin disc gate valve has ceramic liner inside of body, that's why this valve used in good performance for dry ash conveying system and for hopper pump. And this type valve also very good used for high abrasion industries, such as mining, papermaking, chemicals etc. the max temperature of this valve is 200℃.

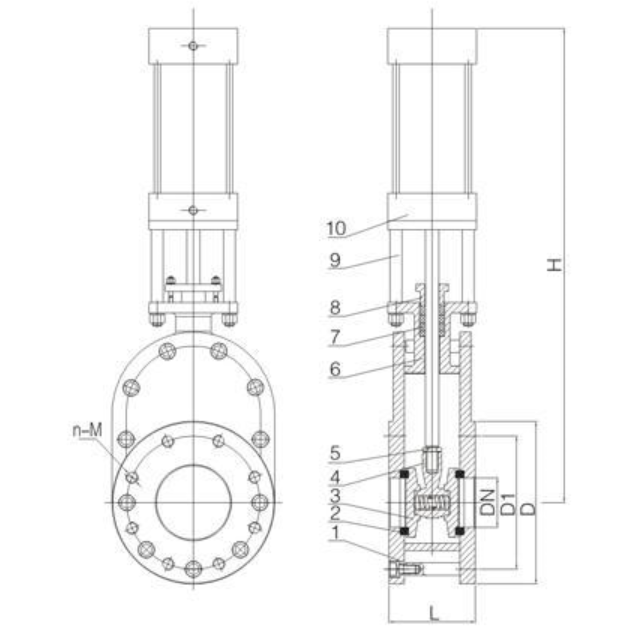

This valve combined with one middle body and two side bodies. to keep valve in long life, flow bore lined with ceramic material,
seat and disc also made in ceramic material. Valve on-off in very short time operated by double acting pneumatic actuator.
This valve combined with one middle body and two side bodies. to keep valve in long life, flow bore lined with ceramic material,
seat and disc also made in ceramic material. Valve on-off in very short time operated by double acting pneumatic actuator.
Specification:
Body Material: ASTM A216 WCB, A351 CF8.
Size Range: DN50-DN600
Pressure Range: PN16.
Ceramic material: Aluminum Oxide, Zirconium Oxide etc.
Size Range: DN50-DN600
Pressure Range: PN16.
Ceramic material: Aluminum Oxide, Zirconium Oxide etc.
Design Features:
1. Double acting pneumatic actuator makes valve served for frequency on-off operating and fast open or close.
2. Self purged by compress air. Dust is not easily blocked or residued.
3. Twin disc design has much more longer life compared with single disc design.
4. Full flow bore design.Medium without any flow resistance.
5. Seat and disc insert material are all made by ceramic. The hard sealing makes valve works great under dry or fly ash conveying system.
2. Self purged by compress air. Dust is not easily blocked or residued.
3. Twin disc design has much more longer life compared with single disc design.
4. Full flow bore design.Medium without any flow resistance.
5. Seat and disc insert material are all made by ceramic. The hard sealing makes valve works great under dry or fly ash conveying system.
Application:
1. Chemical Plant
2. Power Plant
3. Cement Plant
4. Petrochemical Plant
5. Water Treatment
6. Papermaking
7. Mining Plant
8. Steel Smelt
-625x639.webp)
2. Power Plant
3. Cement Plant
4. Petrochemical Plant
5. Water Treatment
6. Papermaking
7. Mining Plant
8. Steel Smelt
