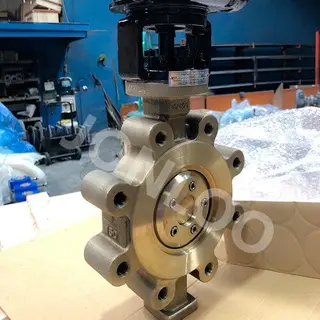

Lug Butterfly Valve 300LB 3INCH WCB
Key Specifications / Features
Model No.: Hits: 11
Leading Butterfly Valve Manufacturer Jonloo supplies Lug Type Butterfly Valve 3inch 300LB WCB body, SS disc and PTFE seal ring.
Request a quote
Share
Tags:
Detail Information
Details
Size:3inch
Pressure Rating: Class 300LB
Body: A216 WCB
Disc:stainless Steel
Seat:PTFE
Standards
1.Design and manufacture:API 609, DIN3354
2.Inspection and test: API 598,DIN3230,BS5146
3.Face-to-Face:API609, DIN3202 K2
4.Flanged Ends: ASME B16.5 (for NPS API605, ASME B16.47 series A, MSS SP-44 (for NPS>24″), or BSEN 1092
5.Top flange: ISO5211
Features
The valve is of high performance.
The triple eccentric design minimize the abrasion on valve seat.
Adjustable mechnical stopper on valve body make it available to close the disc tightly.
The shaft is fully blowout proof and guided by self lubricated bush bearing
